Loadcell Sensor Cards

Load-cell sensor PCB solution for all kind of measuring and checking machines. We provide highly reliable and accurate load-cell sensor PCBs. These products find a wide range of applications ranging from domestic to industrial machines. We provide a large range of electronic load-cell sensor PCBs kits, which include motherboards, power supplies, displays, keypads, four load-cell PCB, RS-232 PCBs, Price/Piece counting PCBs sets and multi function indicators for all types of measuring and checking purposes.

MRB-20-V2

  • Double PCB solution. Separate MotherBoard and power supply.
  • Latest Technologies of Load-cell sensing MicroController and ADC.
  • PTH 300K ADC count for Utilization.
  • Battery voltage display.
  • MicroController and ADC protected from STATIC charges by using high value resistances.
  • Liter measurement and piece counting functions available.
  • Best double PCB design to reduce noise and improve other parameters.
  • Automatic micro controller shutdown and 4.8 battery voltage.
  • 2-level battery charging. Fast mode and slow mode as per battery voltage level.
  • Reverse battery protection.
  • 90 Hours battery backup.

Price: $0.00

Loading Updating cart...

PMS 63

  • MotherBoard with Power supply combined PCB.
  • Latest Technologies of Loadcell sensing MicroController and ADC.
  • Microcontroller Based Battery Charging (Battery Life More).
  • PTH 300K ADC count for Utilization.
  • Battery voltage display.
  • 2-level battery charging. Fast mode and slow mode as per battery requirement.
  • Totally Moisture Proof Designing.
  • MicroController and ADC protected from STATIC charges.
  • 100 Hours Battery BACK-UP.
  • Reverse battery protection for long battery life.
  • Upgraded to pricing counting/piece counting scale.
  • Liter and piece counting mode functions available.

Price: $0.00

Loading Updating cart...

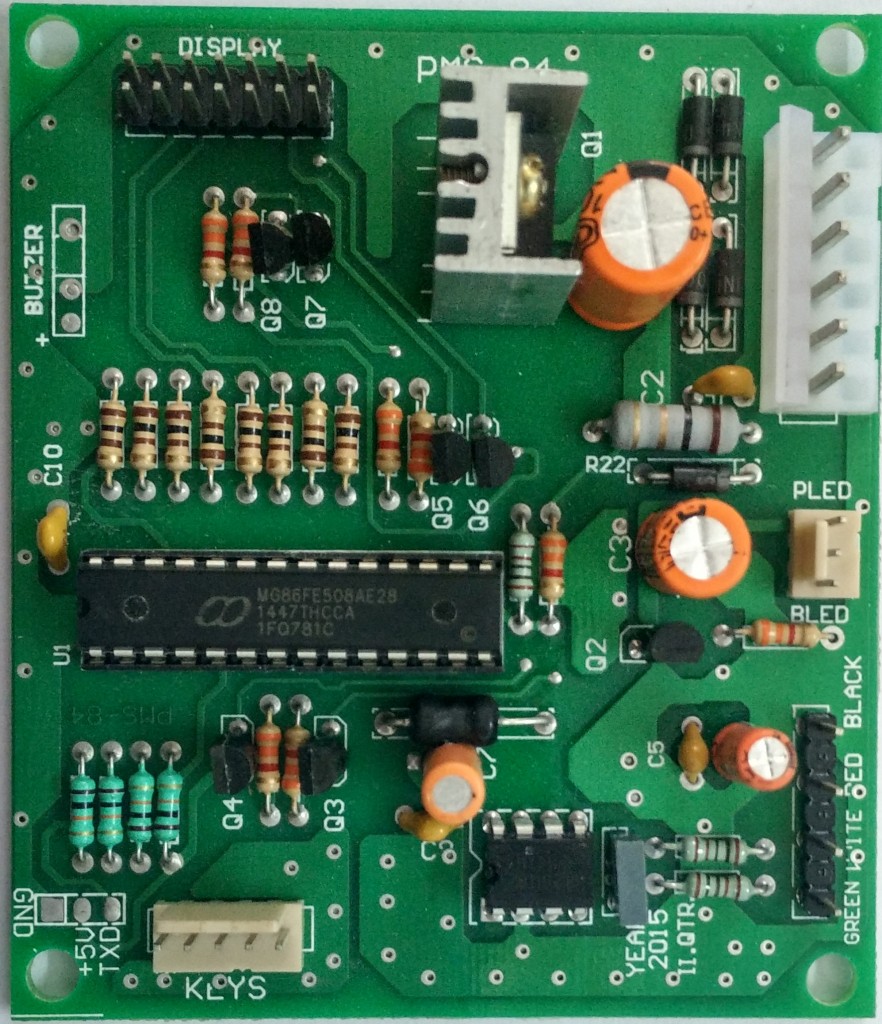

PMS 84

  • MotherBoard with Power supply combined PCB.
  • Latest Technologies of weighing Scale MicroController and ADC.
  • PTH 300K ADC count for Utilization.
  • Totally Moisture Proof Designing.
  • 100 Hours Battery BACK-UP.
  • RS232 function available.
  • Upgraded to piece counting scale.
  • Liter and piece counting mode functions available.

Price: $0.00

Loading Updating cart...

PMS T81

  • Latest single PCB design.
  • Latest Technologies of weighing Scale MicroController and ADC.
  • PTH 300K ADC count for Utilization.
  • Litre and piece counting modes.
  • Best quality single side PCB design.

Price: $0.00

Loading Updating cart...

PMS T-72

  • MotherBoard with Power supply combined PCB.
  • Latest Technologies of weighing Scale MicroController and ADC.
  • PTH 300K ADC count for Utilization.
  • Litre and piece counting modes.
  • Best quality single side PCB design.
  • Totally Moisture Proof Designing.
  •  Used in Industrial as well as retail applications.
  • Economic solutions for Table Top and Indicators.

Price: $0.00

Loading Updating cart...

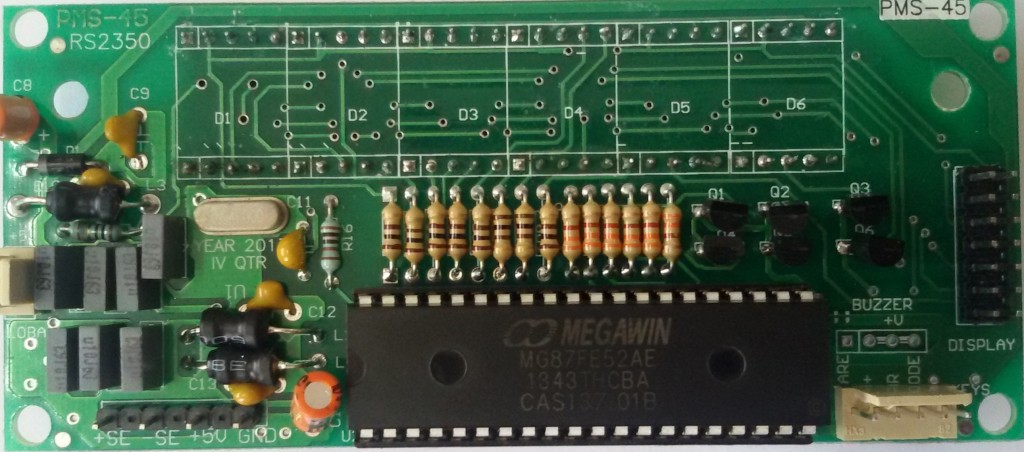

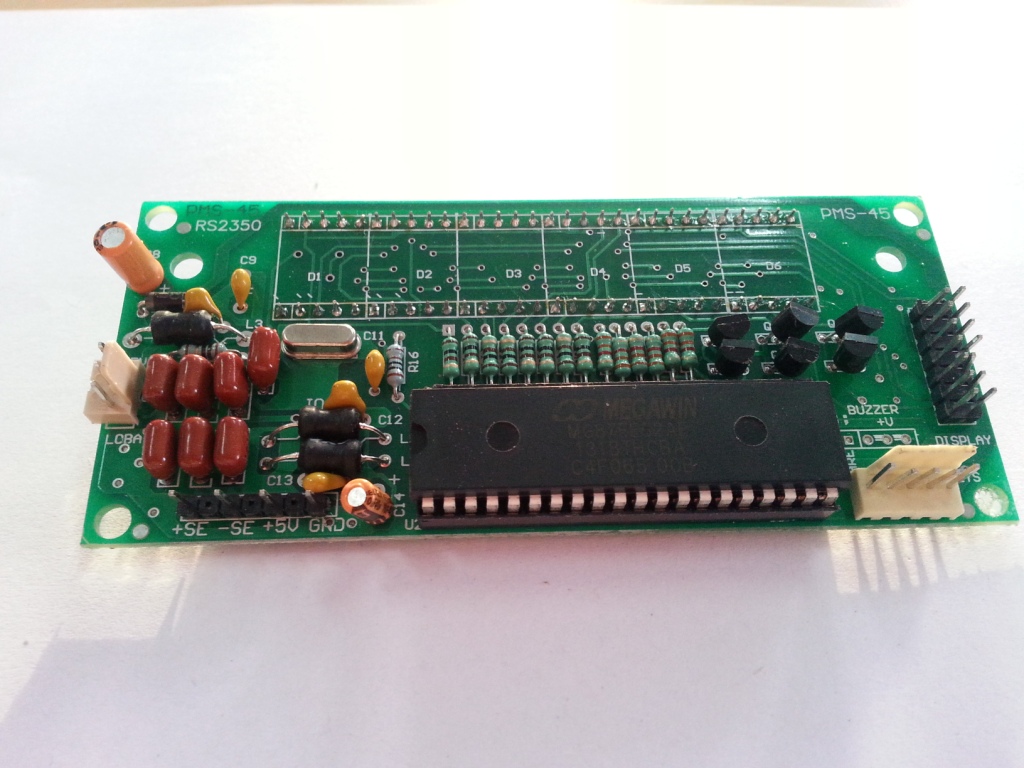

PMS 45

  • Weighing solution for Jewelry scales and high precision applications.
  • High precision Cirrus Logic based ADC solution.
  • Upto 500K counts can be used for measurement.
  • 1-Key online calibration solution.
  • Display mounted on motherboard for compact jewelry scale design.
  • Double PCB solution. Separate MotherBoard and power supply.
  • Used in jewelry scales.

Price: $0.00

Loading Updating cart...

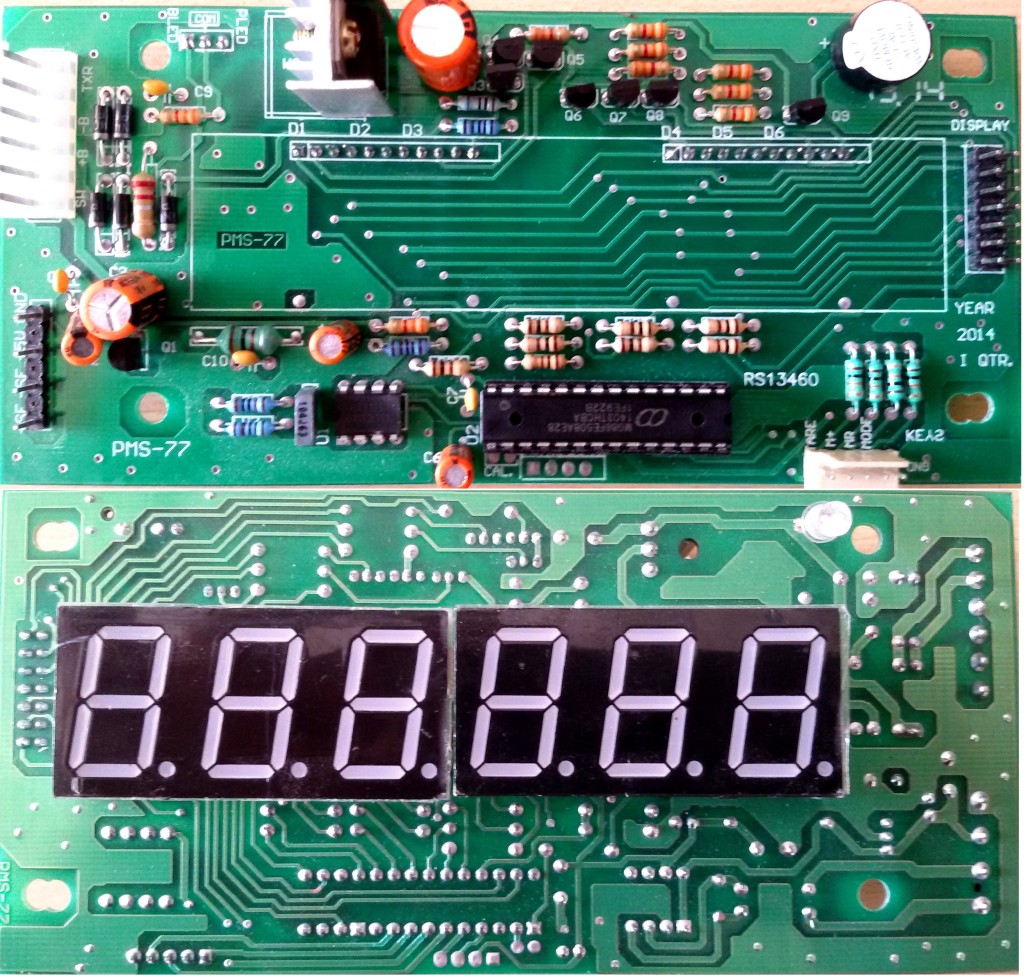

PMS 77

  • Motherboard for T3 Indicator.
  • Up-gradable to pricing counting/piece counting machine.
  • Power saving mode. (Scrolling DP in standby mode)
  • 0.8" Digits mounted on PCB. Ideal for use in indicators.
  • 70 Hours Battery BACK-UP.
  • Micro and ADC protected from STATICS charges.
  • Totally Moisture Proof Designing.
  • PTH 300000 (Three Laces) ADC count for Utilization.
  • Power Supply and MotherBoard on one PCB. Easy installation.

Price: $0.00

Loading Updating cart...

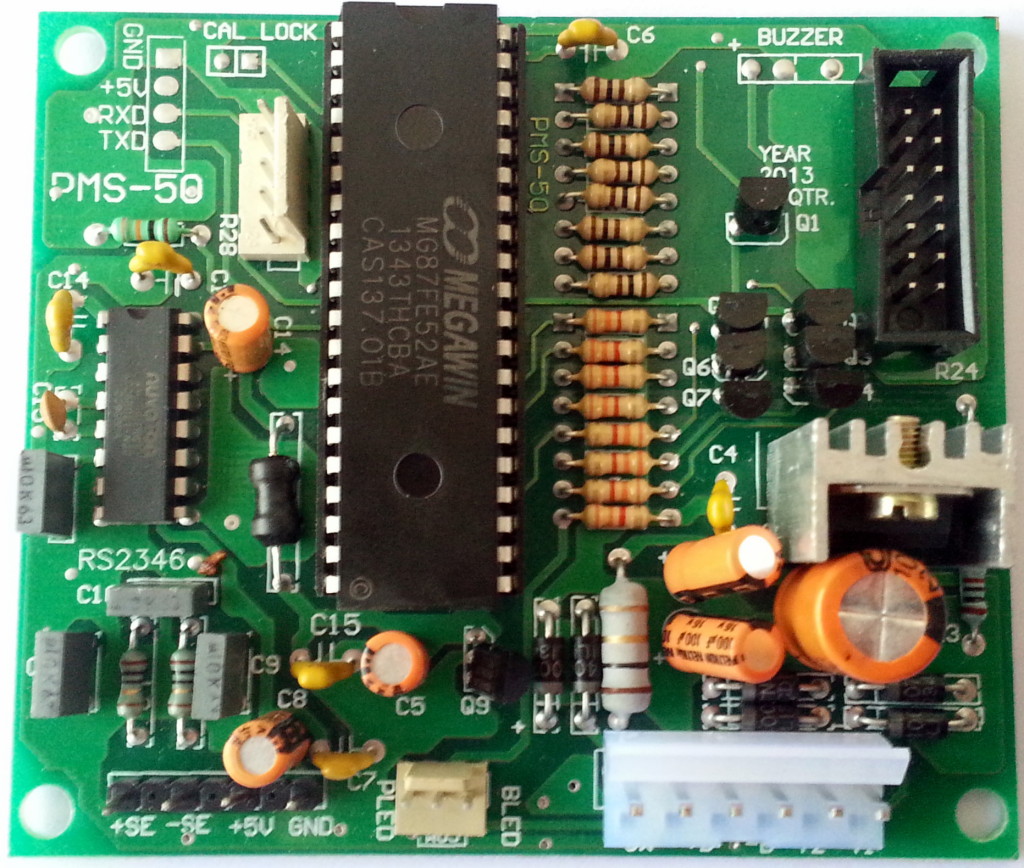

PMS-50

  • Single PCB solution. MotherBoard and Power supply on one PCB.
  • Nuvoton based ADC solution
  • Liter calculation and piece counting functions available.
  • Battery life 70 hours.
  • Used in Industrial as well as retail applications.
  • RS232 functions available (Optional)

Price: $0.00

Loading Updating cart...

PMS 68

  • Latest technology Micro and ADC.
  • Display mounted on the motherboard for compact uses.
  • Power supply and MotherBoard separate.
  • 80 Hours battery life.
  • Liter and piece counting mode functions available.
  • MicroController and ADC protected from STATIC charges.
  • PTH 300K ADC count for Utilization.
  • Economic solution for Table-Tops and Indicators.

Price: $0.00

Loading Updating cart...

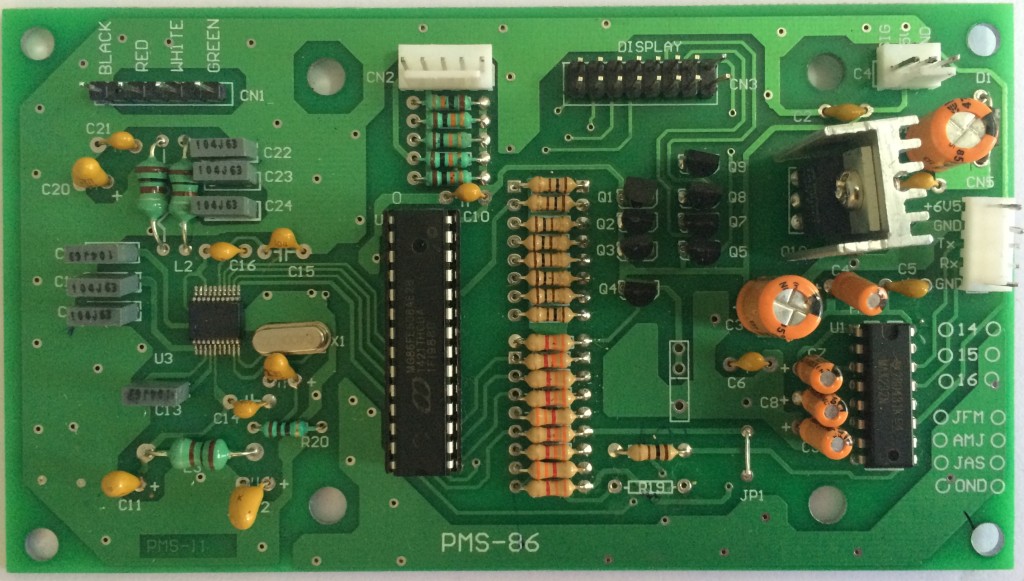

PMS 86

  • High accuracy motherboard.
  • Used for jewelry and scientific machines.
  • High precision Cirrus Logic based ADC solution.
  • Up to 5 Lakh counts can be used for measurement.
  • 1-Key online calibration solution.
  • Double PCB solution. Separate MotherBoard and power supply.

Price: $0.00

Loading Updating cart...

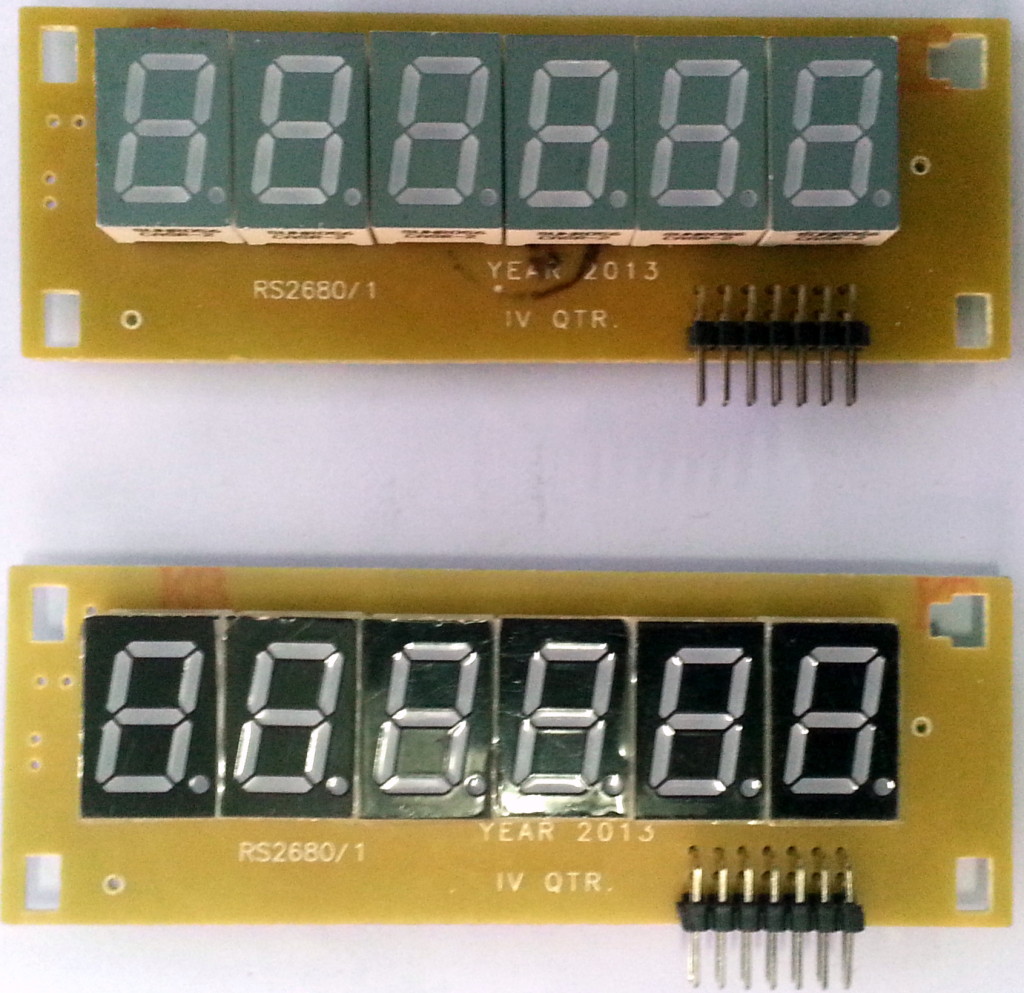

6 Digit Display

  • LED based 6 digit display
  • High intensity
  • Economic solution
  • FRC cable based connector
  • Available in RED and GREEN colors.

Price: $0.00

Loading Updating cart...

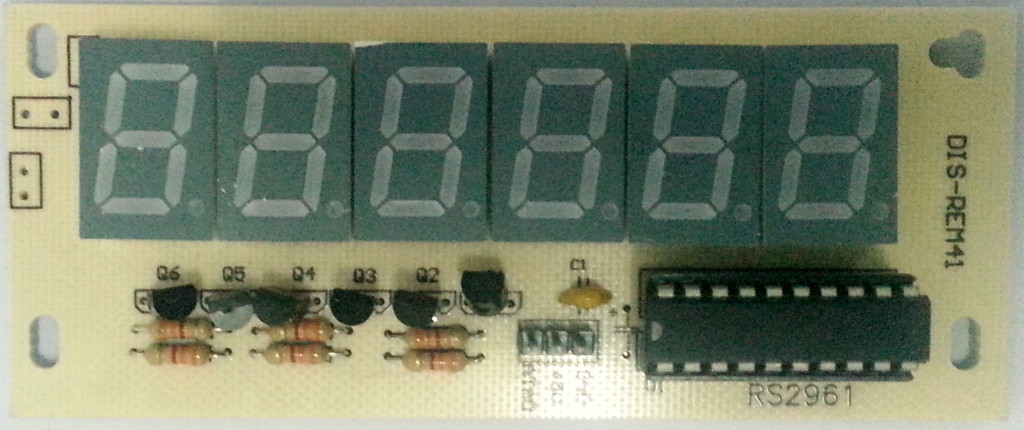

Remote Display

  • 6 digit display
  • MicroProcessor based solution for range up-to 50 Feet
  • 3 wire connector long easy installation
  • High intensity display
  • Available in RED and GREEN colors

Price: $0.00

Loading Updating cart...

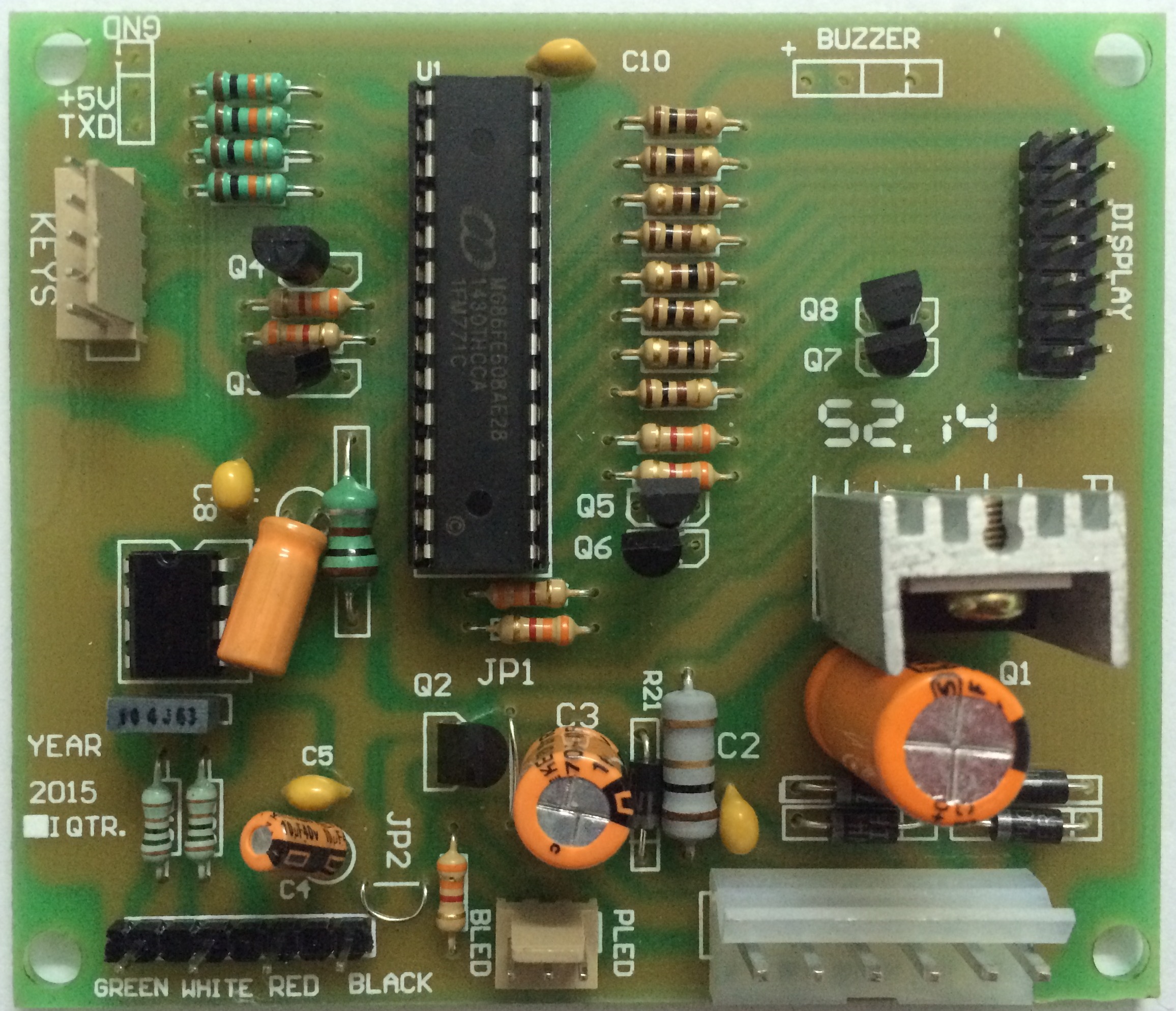

Price Counting Motherboard

  • Single card solution
  • No extra power supply required
  • Price counting functionality available
  • Memory functionality available
  • Printer can also be connected

Price: $0.00

Loading Updating cart...

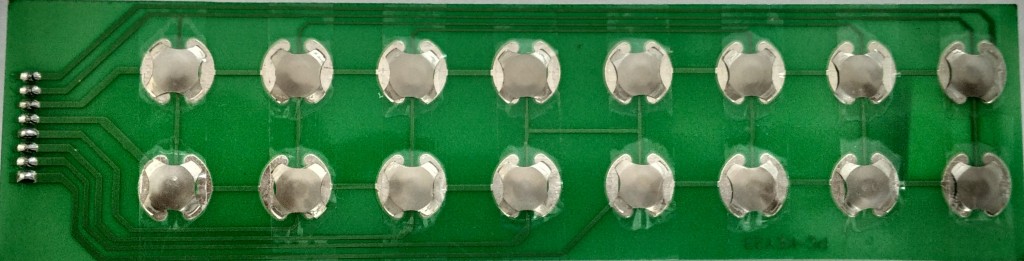

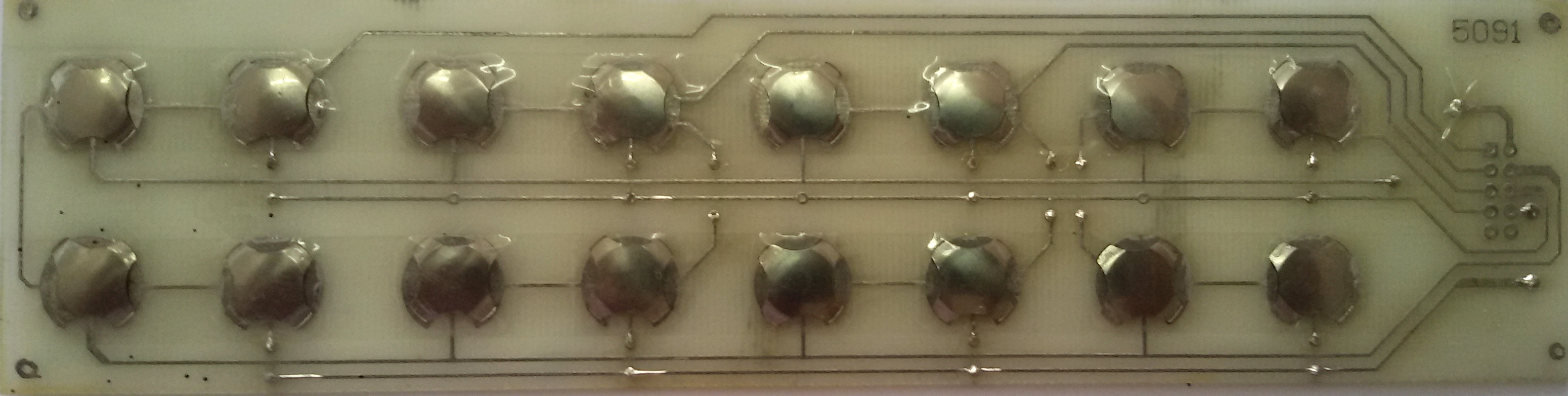

Keyboard for Price Counting Scale

  • 2x8 arrangement of keys
  • Total 16 keys
  • Easy connections
  • 8 Pin connector
  • Easy touch buttons

Price: $0.00

Loading Updating cart...

Price Counting Display (Vertical)

Price: $0.00

Loading Updating cart...

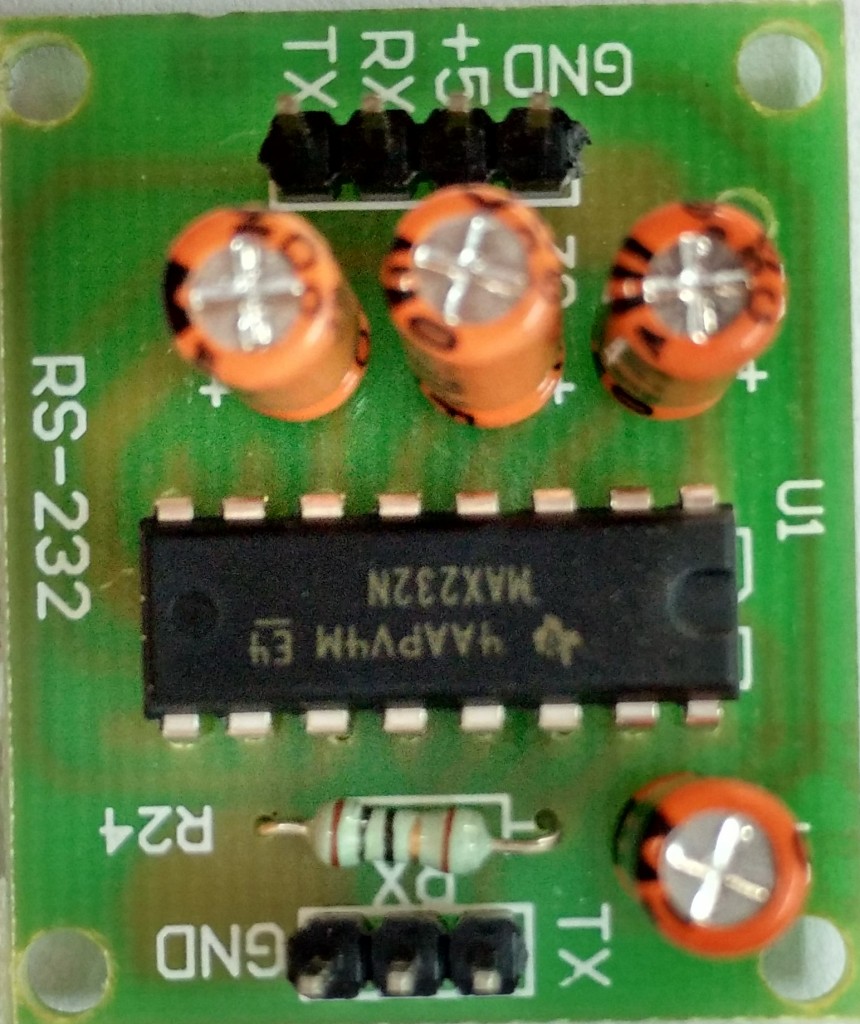

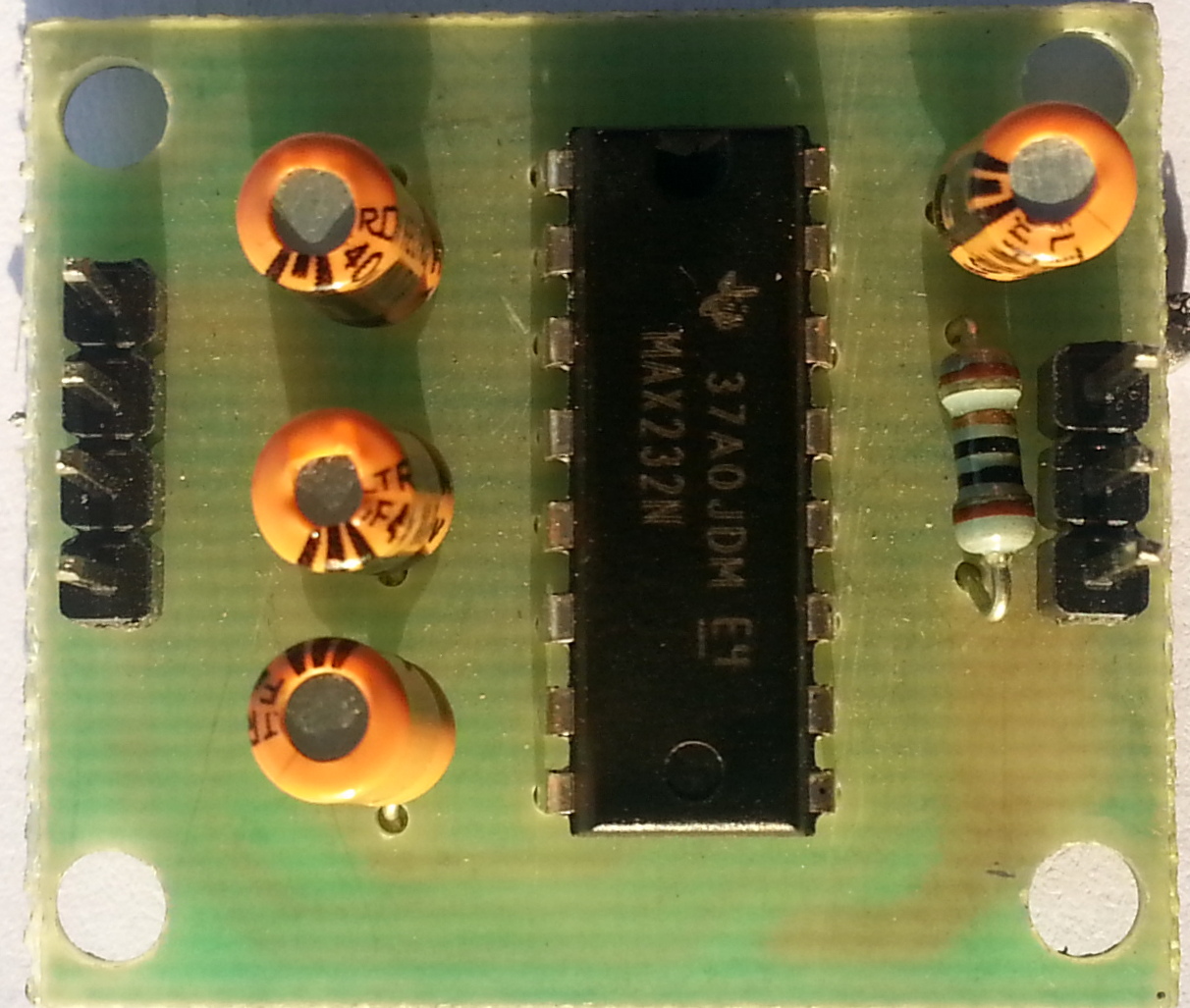

RS-232 PCB

  • Connector PCB for RS-232 Connection from motherboard.
  • MAX232 IC used.
  • Long range communication.
  • Small size.

Price: $0.00

Loading Updating cart...

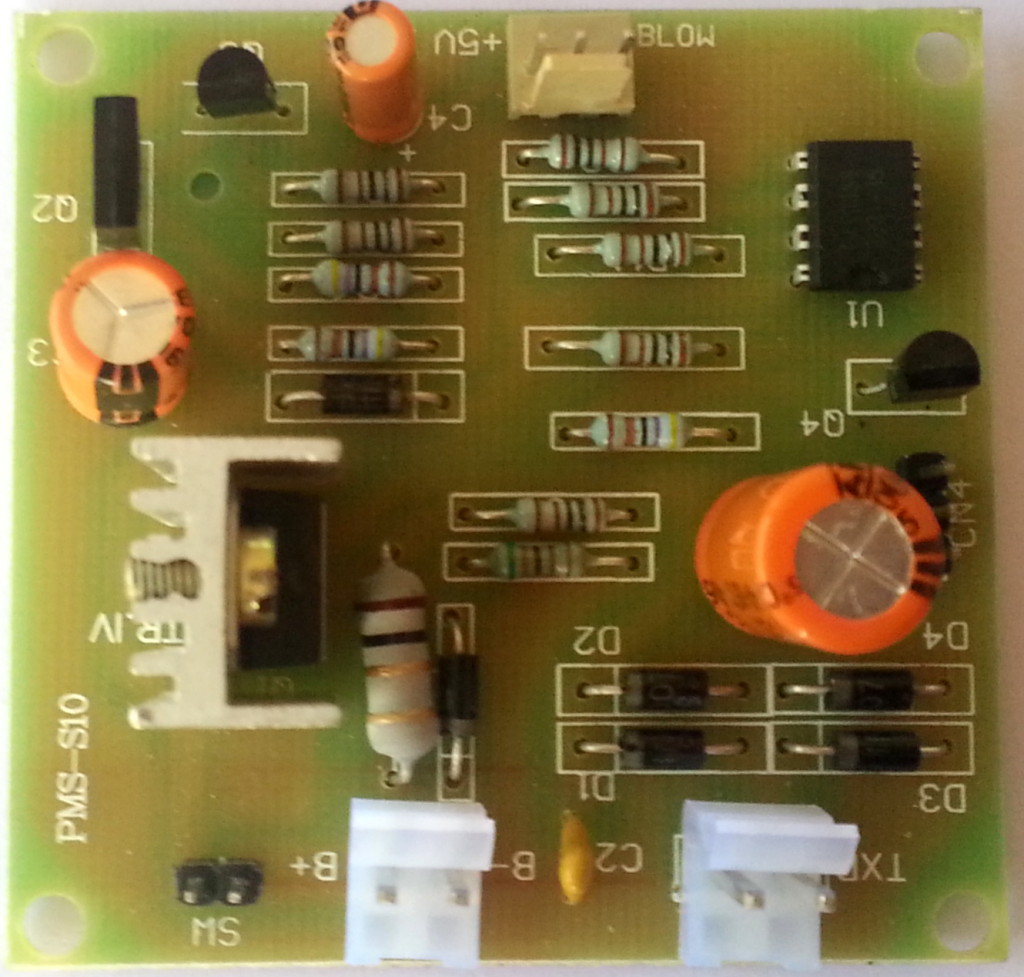

PMS S-10 Power Supply

  • Input 12V from transformer 750mA.
  • Output 5V/1A power supply.
  • LM358 IC based design.
  • Battery low detector.
  • Small and economic.

Price: $0.00

Loading Updating cart...

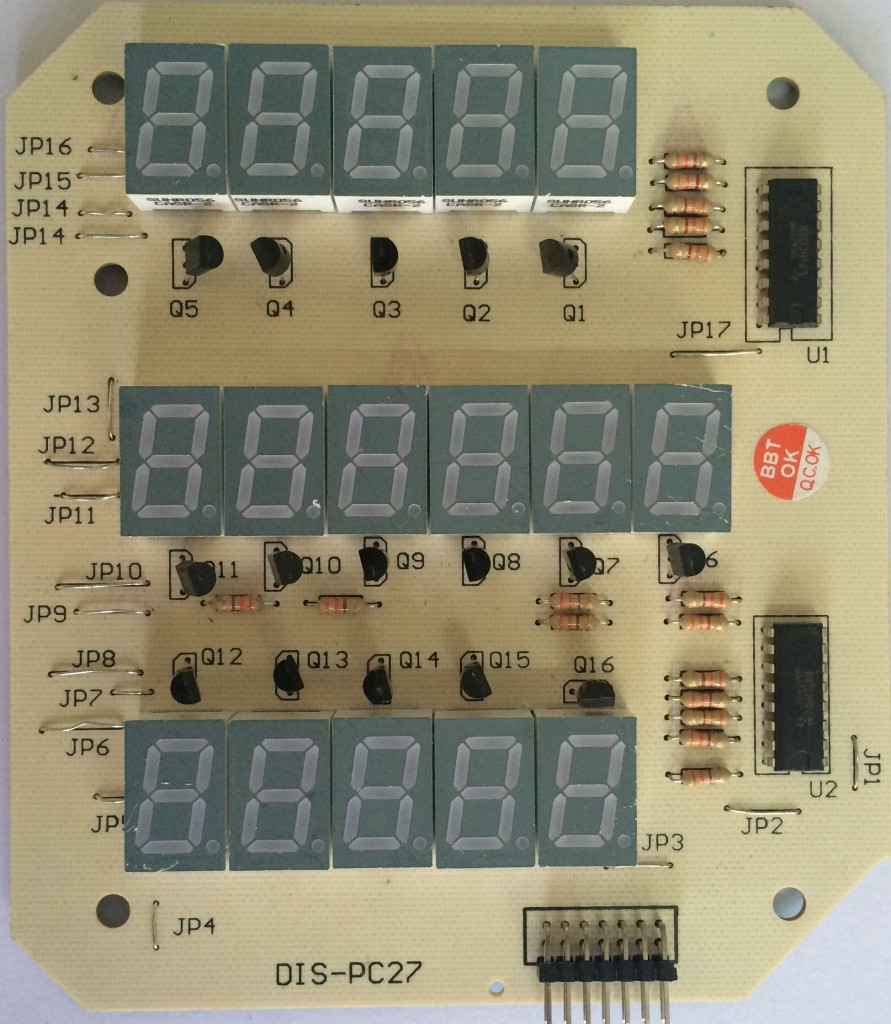

Price Counting Display

Price: $0.00

Loading Updating cart...

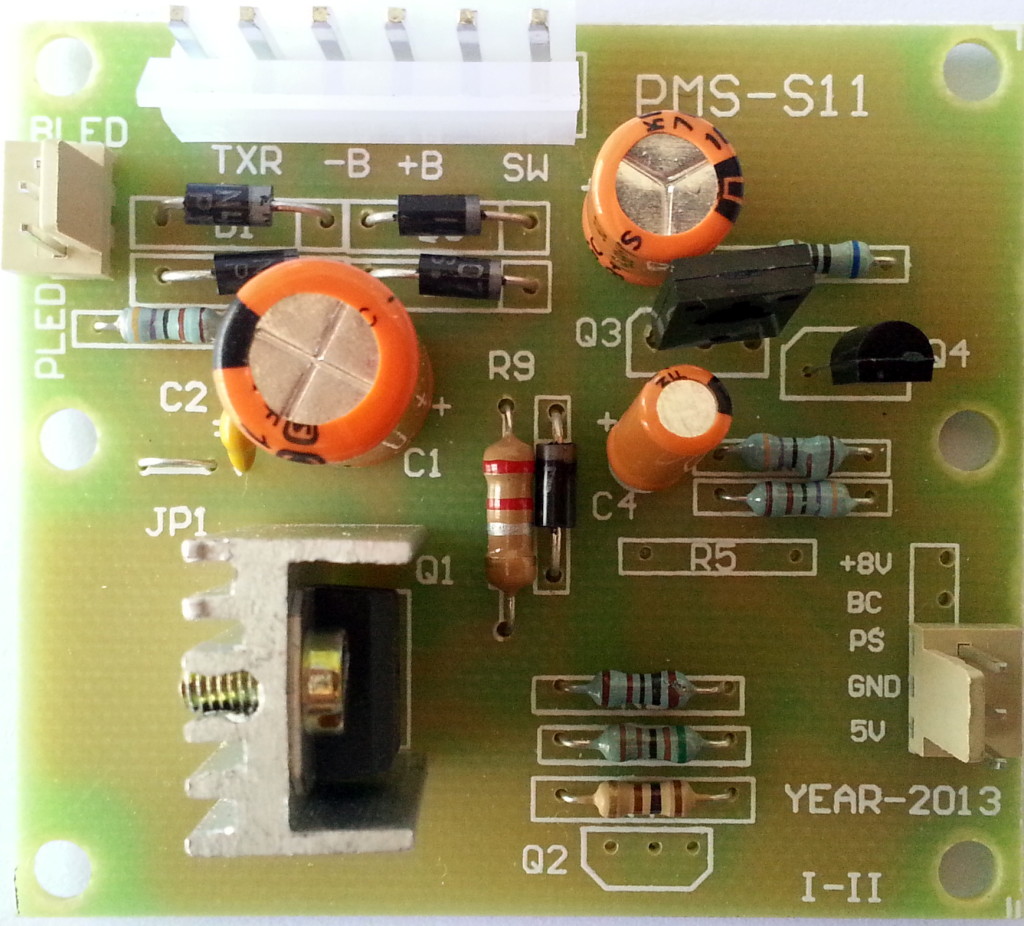

PMS S-11 Power Supply

  • Input 12V from transformer 750mA.
  • Output 5V/1A power supply.
  • Charges 4.5 Ah battery in 6 to 7 hours.
  • Latest design power supply without using LM358 IC.
  • Battery protection.
  • MicroController controlled 2 level battery charging.  Fast and Slow mode depending upon the voltage level of the battery.
  • LM317 used for battery charging.

Price: $0.00

Loading Updating cart...

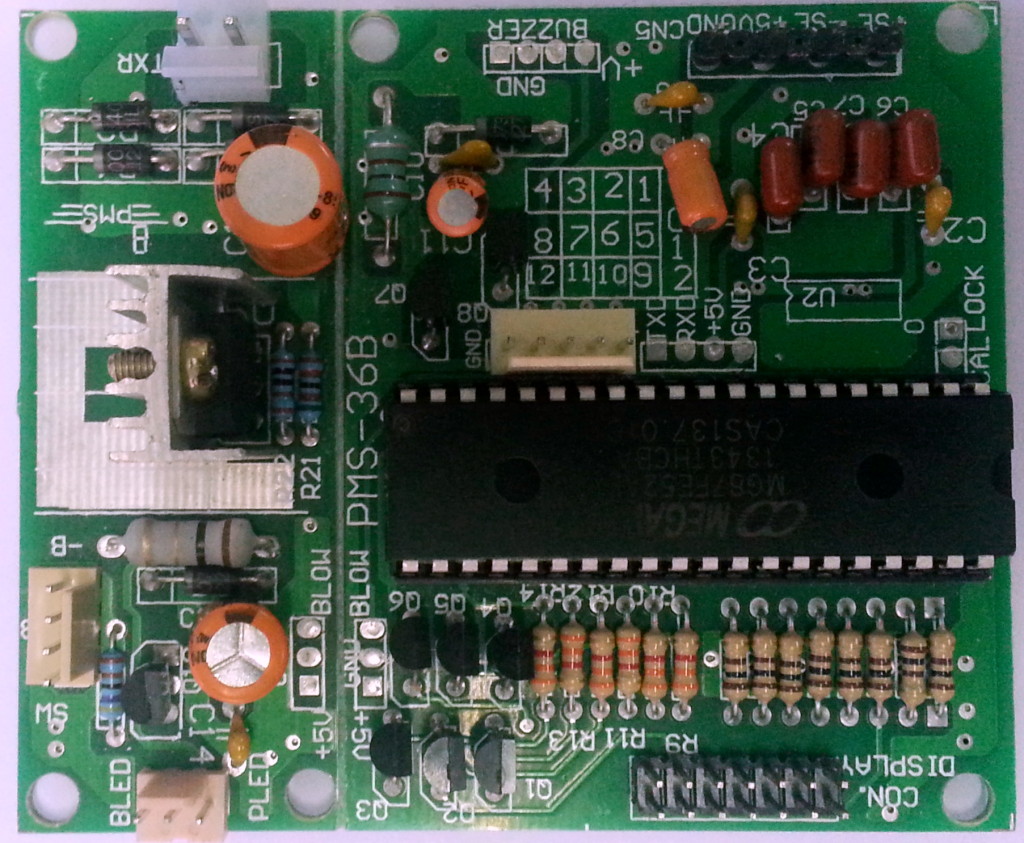

PMS 36

  • Single PCB card. MotherBoard and Power Supply on single PCB.

Price: $0.00

Loading Updating cart...

PMS-55

  • Single PCB solution. Motherboard and power supply combined.
  • TI based ADC solution.
  • 1 Ampere power supply current driving capacity.
  • Can be used with upto 8 Loadcells in weigh bridge solution.
  • Compatible with our most popular MRB A15 MotherBoard.
  • Battery life 70 hours.
  • Moisture proof design.
  • CAn be used in retail as well as Industrial applications.
  • Liter calculation and piece counting functions available.

Price: $0.00

Loading Updating cart...

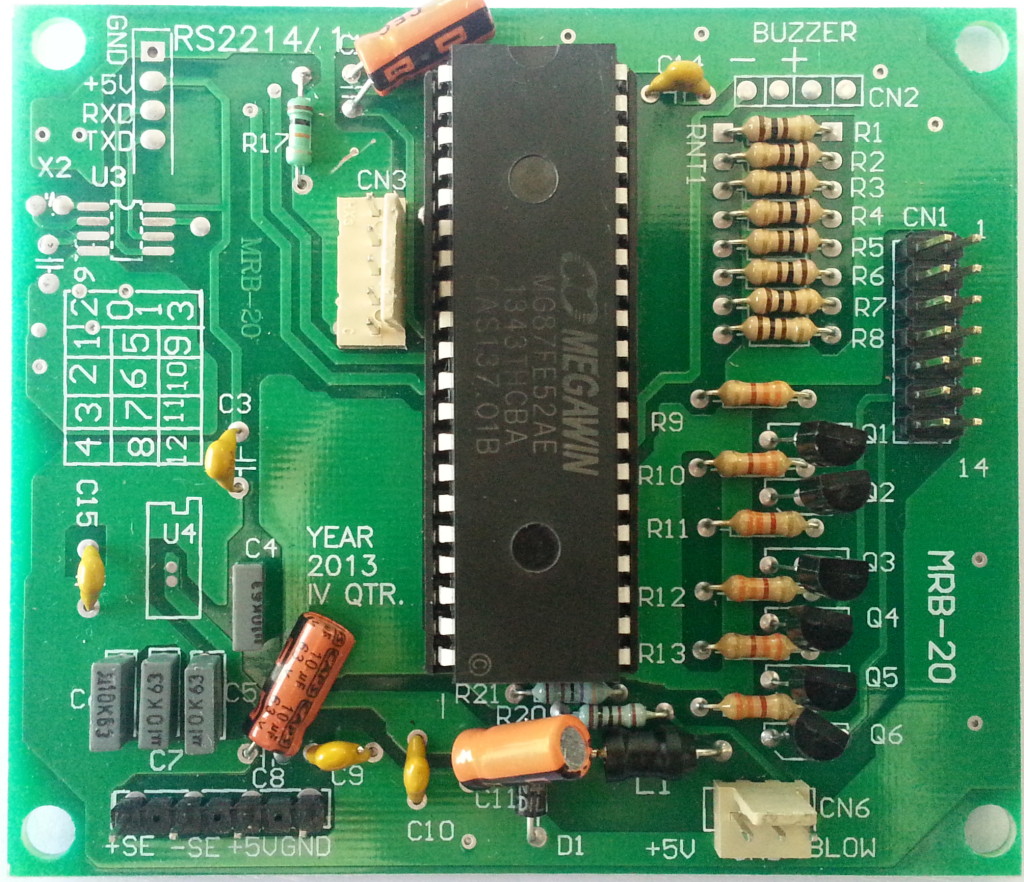

MRB-20

  • Double card, MotherBoard and Power supply separate.
  • TI ADS 1231 ADC based design.
  • 60K counts available for use.
  • Used in Table top and platform scales.
  • liter and piece counting modes.
  • check weighing mode.
  • Memory plus and memory recall functions.
  • RS-232 functions available. (Optional)

Price: $0.00

Loading Updating cart...

MRB-12 (PMP MotherBoard)

  • Double card, MotherBoard and Power supply separate.
  • CS 5460 ADC based design.
  • 60K counts available for use.
  • Used in Table top and platform scales.
  • liter and piece counting modes.
  • check weighing mode.
  • Memory plus and memory recall functions.
  • RS-232 functions available. (Optional)
  • Used in retail and industrial applications.

Price: $0.00

Loading Updating cart...

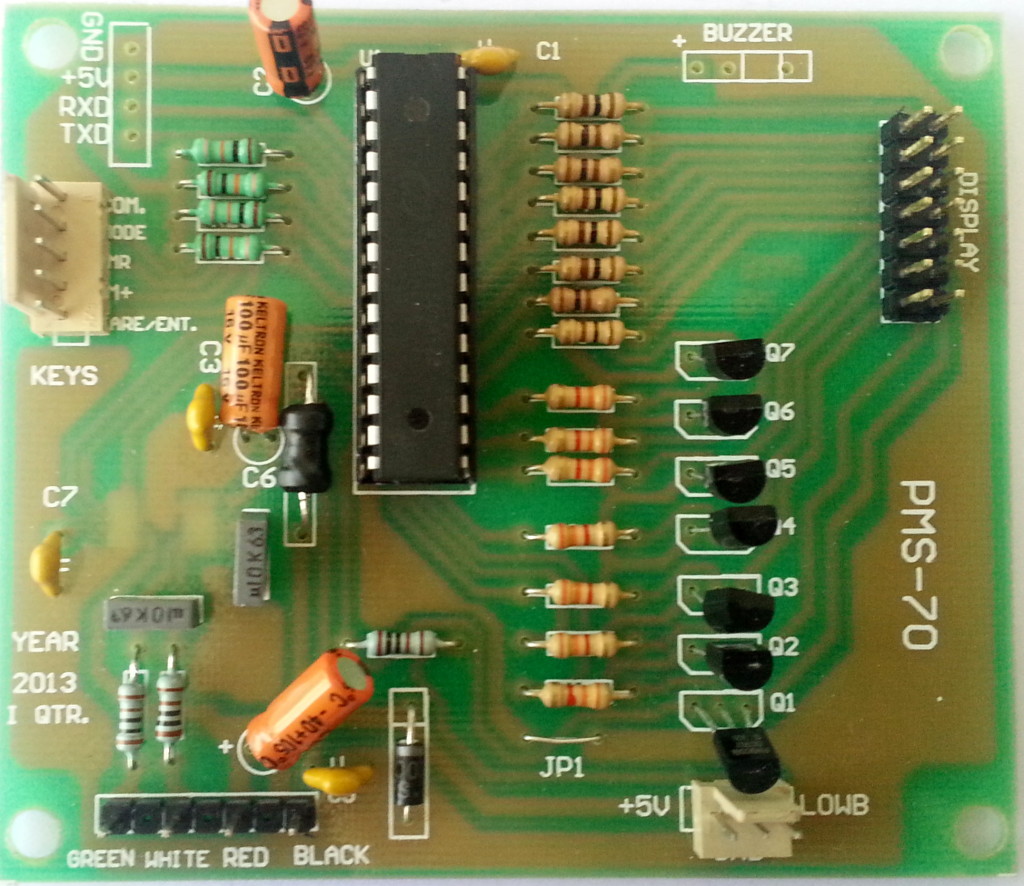

PMS 70

  • Double Card, MotherBoard and Power supply separate.
  • Latest Technologies of weighing Scale Micro and ADC.
  • TI based ADC solution.
  • Totally Moisture Proof Designing.
  • Micro and ADC protected from STATICS charges.
  • 80 Hours Battery BACK-UP.
  • Piece counting and Litre mode function.
  • Check weighing system.
  • Hold/Peak detect functions. (Optional)
  • RS232 functions available.
  • Best quality single side PCB design.
  • Used in Industrial as well as retail applications.

Price: $0.00

Loading Updating cart...

Jumbo Display

  • Extra large display for easy viewing
  • 6 Digit Red and Green color available.

Price: $0.00

Loading Updating cart...

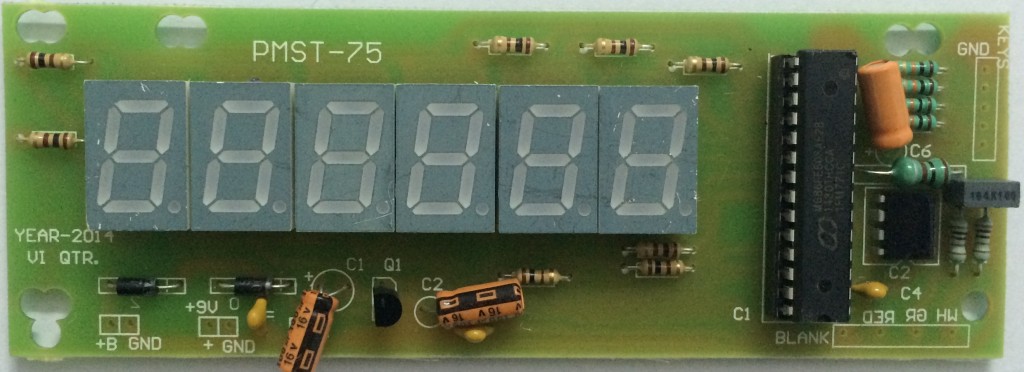

PMS T-75

  • Compact small size motherboard.
  • Display on motherboard solution.
  • single side PCB.
  • Can be powered by adapter. (No transformer required)
  • Used in small personal scales.
  • Latest Technologies of weighing Scale MicroController and ADC.

Price: $0.00

Loading Updating cart...
